3D VIEW FINDER: 3DVF-15D
3D Stereoscopic Viewfinder
- Key Features

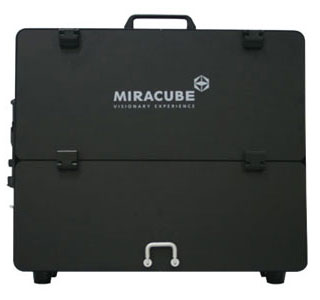

- · Portable with a carrying handle on top
· Real time monitoring
· Light weight
· Excellent Durability

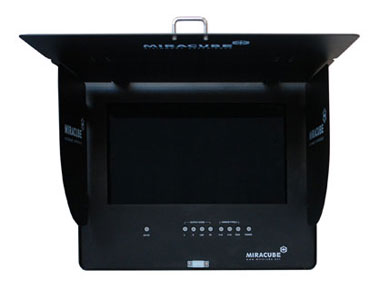

· Adjustable flaps to block out the sun
· Professional Grade 3D Stereoscopic Display
· DVI In & Out Ports
· Professional Grade Synchronizer for combining 2 feeds
into one 3D movie file
- Model Name
- 3DVF-15D
- Screen Size
- 15.26 inch [337.92 X 190.08 mm]
- 3D Type
- Circular Glasses
- Screen ratio
- 16:9
- Panel Type
- TN TFT color LCD
- 3D Format
- Side by side , Frame Sequential(3D Function Automatic Selection)
- Mirror Processing
- Horizontal, Vertical Hardware based real time
- Brightness
- 250 cd/m2
- Resolution
- 2D : 1280 X 720
3D : 1280 X 360 (Left Image - Odd Number Field)
1280 X 360 (Right Image - Even Number Field)
- Display Color
- 16.2 Million
- Pixel Pitch
- 0.264 mm
- Signal Support
- 1920 * 1080i ( 59.94hz/ HDMI (Video only)
- OSD Control
- 2D/3D, Left, Right, LR, Frame,
H Mirror, V Mirror, PA, Power
- Input(Left/Right)
- DVI x 2
- Output(Stereo)
- DVI x 1
- Connector
- HDMI (Not Support Audio)
- Dimension(WxLxH)
- 470 x 155 x 405 mm(W*L*H)
- Weight
- 10.8 kg
- Power
- DC 12V 3A (MAX) / 2P DIN
- Accessories
- Power Cable, Adaptor
