3D WINDOW : WD047F [Inquire]

3d projection

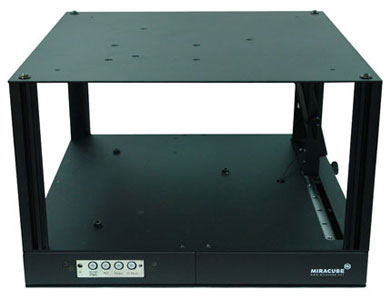

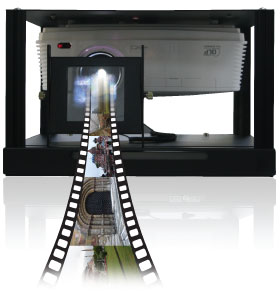

Stereoscopic 3D Projection System

Key Features
·Passive glasses quality : No more heavy active 3D glasses,just light passive 3D ones!
· Only one 2D projector required
· Many are compatible!
· Ceiling Mountable
· Keep the kit and only change the projector
· Great for board rooms and teleconferencing
· Enhanced for Simulation and Visualization
  • Specifications
Model Name
WD-047F
Active Area
86X84mm(4.7type)
Polarization type
Circular Polarization Glasses
Light transmittance
33%(±2%)

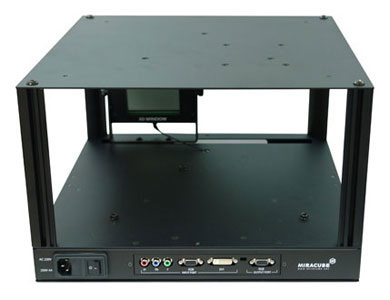

Input


Component (SMPTE @ 50hz, 60hz)
DVI (VESA @ 60Hz) / (1024 x768 @ 60hz)
RGB (VESA @ 60Hz) / (1024 x768 @ 60hz)
Output
RGB (VESA @ 60Hz) / (1024 x768 @ 60hz)

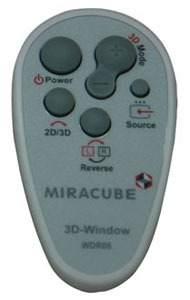

OSD key
2D/3D(Power),Reverse,Source,Mode(FR,LR,UD)
Weight
6.2KG(WithoutProjector&Accessories)
Size
400X240X400mm(WxHxL)/withcase
Material

Case:Aluminum
Wall Plate : EGI
Best Operation Temperature
0~50℃
Remote Control
No
Color
Black
Power
AC100-240V,50/60hz(17W under)
Warranty
Window Module : 1,000 Hour or 1Year - whichever occurs first
참고사항
본 제품은 국내 전용 제품이며, 주문자 생산방식으로 별도 문의 바랍니다.
