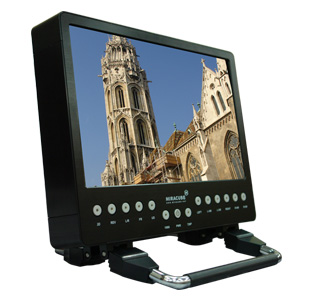

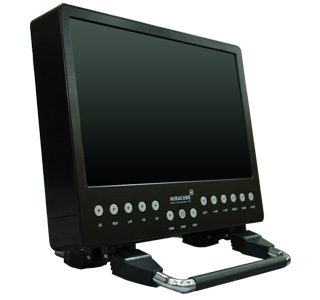

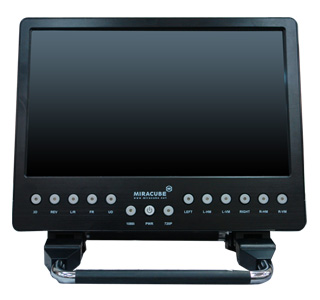

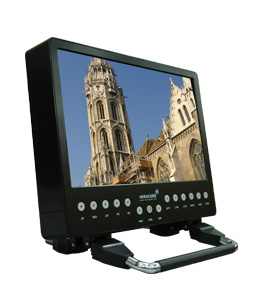

3D VIEW FINDER: VF-101P [Discontinue]

3D Viewfinder

3D Stereoscopic Viewfinder

Key Features
· Portable with a carrying handle on top
· Real time monitoring
· Light weight
· Excellent Durability
· Adjustable flaps to block out the sun
· Professional Grade 3D Stereoscopic Display
· HD-SDI In & Out Ports
· Professional Grade Synchronizer for combining 2 feeds into one 3D movie file
  • Specifications
Model Name
Screen Size
10.2 inch [222.72(H) * 130.5(V) mm]
Stereoscopic Type
Passive Circular Glasses
Aspect Ratio
16 : 9
Panel Type
TN TFT color LCD
Stereo Format
Sidefield, Frame Sequential, Top and Bottom
Mirror Processing
Horizontal, Vertical Hardware based real time
600 cd/m2

2D : 1024 X 600
3D : 1024 X 300 (Left Image - Odd Number Field)
1024 X 300 (Right Image - Even Number Field)
Display Color
262K (6 BIT)
Pixel Pitch
0.2175 mm
Signal Support

1080 ( 23.98P, 24P, 29.97P, 25P, 30p, 59.94i, 50i, 60i )
720 ( 59.94P, 50P )
OSD Features

3D Mode : (Grid move and distance control, 4 corner zoom, center zoom in 3D, Reverse)
LR(Sidefield), FR(Frame Sequential), UD(Top and Bottom)
1080i, Power (ON/OFF),720P (Auto detect LED Indicator)
2D Mode : eft, L(H-M) , L(V-M) , Right, R(H-M) , R(V-M)

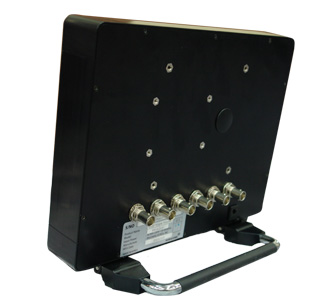

HD-SDI * 2 (Left Camera , Right Camera)
HD-SDI * 2 (Left Camera Loop through), HD-SDI * 2 (Right Camera Loop through)
BNC female
250 * 194 * 40 mm(W*D*H)/ including stand add 20mm
2.1 kg (includes mounting, Net Weight.)
Aluminum/ Black (Colors are subject to change without notice.)
DC 12V 3A (MAX) / 2P DIN
Power Cable, Adaptor, 3D Glasses, manual, ARM,Durable Travel Case(Option)
1 Year
