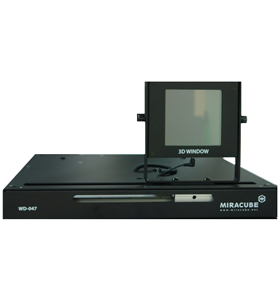

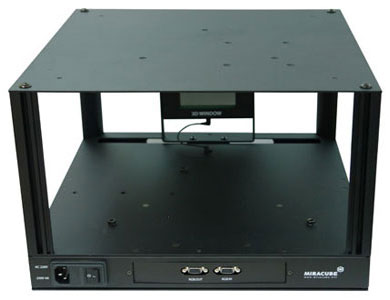

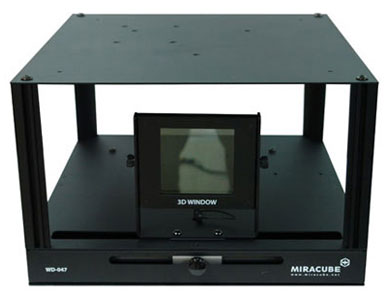

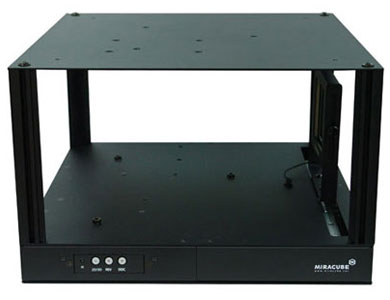

3D WINDOW : WD-047SA

Features
Gallery

3d projection

3D Stereoscopic Projection System

Key Features: · Passive glasses quality : No more heavy active 3D glasses,just light passive 3D ones!
· Only one 2D projector required
· Many are compatible!
· Ceiling Mountable
· Keep the kit and only change the projector
· Great for board rooms and teleconferencing
· Enhanced for Simulation and Visualization

Specifications

Model Name: WD-047SA
Active Area: 86X84mm(4.7type)
Polarization type: Circular Polarization Glasses
Light transmittance: 33%(±2%)
Input: RGB(VGA ~WUXGA @ 60 /120hz)
Output: RGB(Input Bypass)
OSD key: DDC,Reverse,2D/3D
Weight: 6.2KG(WithoutProjector&Accessories)
Size: 400X240X400mm(WxHxL)/withcase
Material: Case:Aluminum
Wall Plate : EGI
Best Operation Temperature: 0~50℃

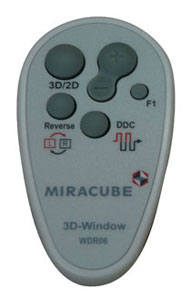

Remote Control: Yes
Color: Black
Power: AC100-240V,50/60hz(17W under)
Warranty: Window Module : 1,000 Hour or 1Year - whichever occurs first
